Steam and gas turbines are essential in power generation, and their reliable performance hinges on the precision and quality of critical machined parts. These components must endure extreme temperatures, high pressures, and constant mechanical stress, making their design and manufacturing a crucial aspect of turbine efficiency and longevity. Below are the key machined parts that play a vital role in turbine performance.
1. Rotor Shaft

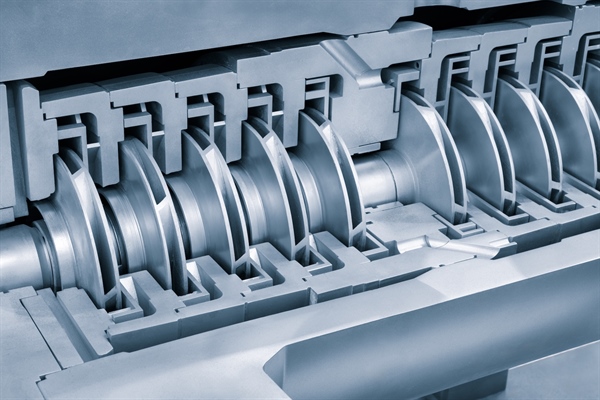

The rotor shaft is the central component that transmits rotational energy generated by the steam or gas expansion to the generator. Precision machining ensures proper balancing, which is critical to minimize vibrations and reduce the risk of mechanical failure. High-strength materials are used to withstand thermal and mechanical stresses.
2. Turbine Blades

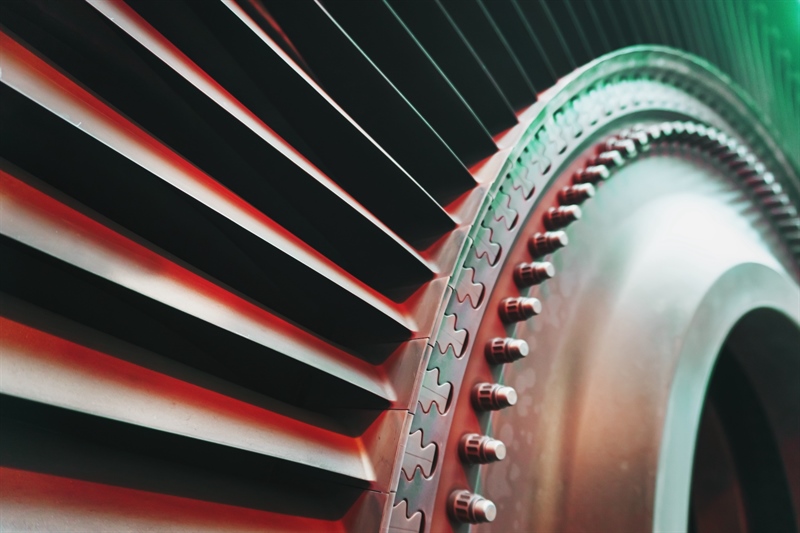

Turbine blades are responsible for capturing energy from the steam or gas flow and converting it into rotational motion. Machining precision is essential to ensure blade alignment, aerodynamic performance, and resistance to high temperatures and corrosion. Blade root fitting must be precisely machined to avoid loosening during operation.
3. Stator Components
Stator components are stationary blades or vanes that direct steam or gas flow onto the turbine blades. These parts must be machined with tight tolerances to maintain efficient flow patterns and reduce turbulence. High-quality surface finishes help minimize energy loss and enhance turbine performance.
4. Bearings and Bearing Housings
Bearings support the rotor shaft and ensure smooth rotational movement. Machining accuracy is essential to maintain proper alignment and minimize friction. Bearing housings must be machined to tight tolerances to prevent misalignment and reduce wear over time.
5. Casing and Shells

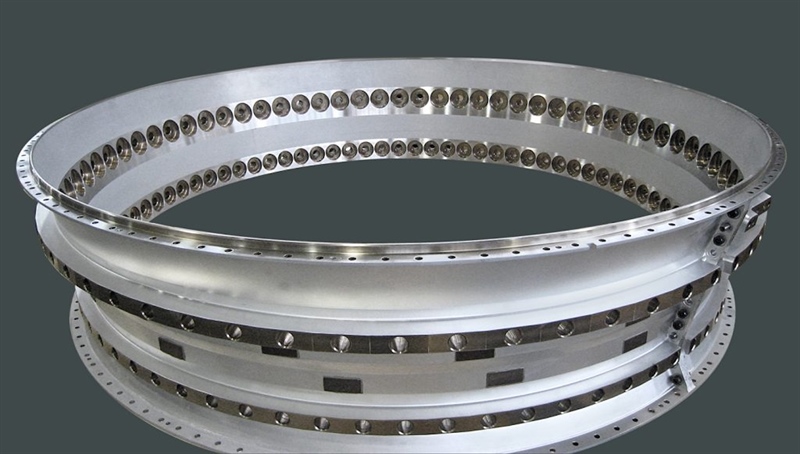

The casing or shell encloses the turbine’s internal components and provides structural integrity. These parts must be machined precisely to ensure proper sealing, thermal expansion control, and ease of assembly. High-strength materials are typically used to withstand high pressures and temperatures.
6. Nozzle Segments
Nozzle segments direct steam or gas onto the turbine blades at the correct angle and velocity. These components require precision machining to ensure uniform flow distribution and minimize energy losses. Proper surface finishes also help reduce erosion caused by high-velocity flow.
7. Seal Rings
Seal rings are critical for preventing steam or gas leakage between the rotating and stationary parts of the turbine. Machined to tight tolerances, these components help maintain pressure and efficiency. High-temperature-resistant materials are often used to ensure durability under extreme conditions.
8. Couplings
Couplings connect the turbine shaft to the generator or other rotating machinery. These parts must be machined with high precision to ensure proper alignment and torque transmission. Misaligned or poorly machined couplings can lead to vibration, excessive wear, and potential failure.
9. Diffusers
Diffusers slow down the steam or gas flow after it has passed through the turbine, converting kinetic energy into pressure energy. Precision machining ensures the correct geometry for optimal energy recovery and flow stability.
10. Heat Shields and Insulation Components
Heat shields protect turbine components from excessive heat exposure. These parts must be machined to precise dimensions to ensure proper fit and coverage. Using heat-resistant materials and applying appropriate surface treatments enhance their durability and performance.
Land-Based Gas Turbines
Land-based gas turbines are widely used in power plants, industrial facilities, and energy generation stations. They convert the chemical energy of fuel into mechanical energy, which is then converted into electrical power. Land-based turbines often operate under harsh environmental conditions and require robust, high-precision components for optimal performance.
Specific GE Gas Turbine Models
- GE (General Electric) is a leading manufacturer of gas turbines, known for its advanced technologies and high-efficiency engines. Some of the most notable GE gas turbines include:
- GE 7HA Series: This series is part of GE’s HA (High-Efficiency, Air-Cooled) gas turbine family. It is designed for combined-cycle power plants and offers high efficiency and fast start-up times. Precision machining ensures the turbine’s blades, rotors, and bearings can handle the extreme temperatures and pressures of high-efficiency operations.
- GE 9HA Series: The 9HA turbines are among the world’s largest and most efficient gas turbines. They are used in large-scale power generation applications, with tight tolerances and high-strength materials ensuring reliable operation.
- GE LM6000: This aeroderivative gas turbine is designed for quick-start, flexible power generation. It is commonly used in peaking power plants and industrial applications, with critical machined parts such as rotors and nozzles designed to withstand frequent start-stop cycles.
- GE Frame 6B: A versatile gas turbine used in power generation and industrial applications. Its robust construction and precision-machined parts ensure high reliability and durability.
Benefits of Precision Machining for Turbine Parts
- Enhanced Efficiency: Precision-machined parts reduce energy losses, ensuring optimal turbine performance.
- Improved Reliability: High-quality machining minimizes the risk of part failure, extending the turbine’s service life.
- Reduced Maintenance Costs: Accurate machining reduces wear and tear, lowering the frequency and cost of maintenance.
- Operational Safety: Properly machined components improve the overall safety of turbine operations by reducing the likelihood of mechanical failures.
Applications in Power Generation
Steam and gas turbines are used across various industries, including:
- Power Plants: Turbines generate electricity in fossil fuel, nuclear, and renewable energy power plants.
- Petrochemical and Refining: Turbines drive compressors and pumps in oil and gas processing plants.
- Industrial Manufacturing: Turbines provide mechanical power for large-scale manufacturing operations.
-
Conclusion
The performance and reliability of steam and gas turbines depend heavily on the quality of their critical machined parts. Investing in precision machining ensures optimal efficiency, extended service life, and reduced operational risks. Partnering with a turnkey machining and fabrication supplier with expertise in turbine components can provide the high-quality parts necessary for safe and efficient turbine operation. When precision matters, trust in the power of expert machining to keep your turbines running at peak performance.
